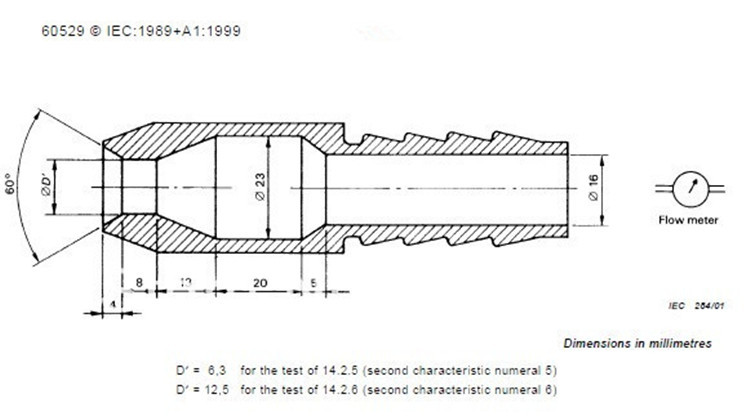

IEC60529 fig 6 ipx5 and ipx6 spray nozzle for water resistance test

日期：2025-04-30 18:42

浏览次数：441

摘要：IEC60529 fig 6 ipx5 and ipx6 spray nozzle for water resistance test，The IEC60035-5 IEC60529 Jet Nozzle IPX5-6 Jet Nozzle consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.

Application:


							The IEC60035-5 IEC60529 Jet Nozzle  IPX5-6 Jet Nozzle consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.

							The IPX5/6 jet nozzle is mainly used for rain test machine (waterproof grade IPX/3/4), which can be easily replaced, and is suitable for box type and split type.

Technical parameter

Item	IPX5	IPX6
Nozzle diameter	6.3mm	12.5mm
Pressure Gauge	0~0.25MPa	0~0.25MPa
Water pipe outer diameter	32mm	32mm
Water pipe joint outer diameter	28mm	28mm
Water discharge	12.5±0.625L/min, adjustable	100±5L/min, adjustable
Distance between nozzle and the enclosure	2.5~3m	2.5~3m
Test time	More than 1min/m2 and 3mins	More than 1min/m2 and 3mins
Materials	SUS304 stainless steel
Conforms to	IEC60529

Detailed Images

The different from IPX5 and IPX6:

							1. The IPX5 waterproof rating specifies a spray gun aperture of 6.3mm and the IPX6 waterproof rating specifies a spray gun aperture of 12.5mm.
2. The water flow rate of IPX5 waterproof level is 12.5±0.625L/min, and the water flow rate of IPX6 waterproof level is 100±5L/min.
3. In the IPX5 waterproof grade, the center of the main water flow is about 40mm from the nozzle 2.5m; the central part of the main flow in the IPX6 waterproof grade is about 12mm from the nozzle 2.5.
IPX5 and IPX6 have a test time of at least 3 minutes and a nozzle to case surface distance of 2.5m-3m
