IEC60335-2-9 Clause 3 Figure 103 and Clause 3 figure 104 Vessel for testing hotplates

日期：2025-04-30 18:42

浏览次数：303

摘要：IEC60335-2-9 Clause 3 Figure 103 and Clause 3 figure 104 Vessel for testing hotplates

Recommend Products

IEC60335-2-9 clause 3 figure 103 Parameter: 1.Pot and lid material industrial aluminum 2. Pot material thickness 2 mm; 3. The bottom of the pot body can not be outward convex, can not exceed 0.05mm; 4. Pot body and lid surface should be smooth; 5, size: 110, 145, 180, 220, 300mm each one

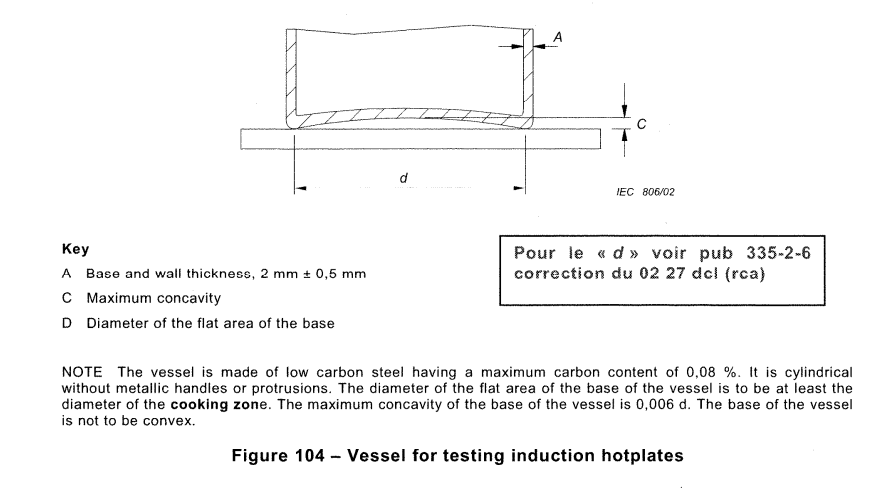

									IEC60335-2-9 clause 3 figure 104 Parameter :


									 Pot and lid material is mainly Q235, carbon mass fraction <0.08%;
2. The thickness of the wall material is 2 mm;
3. The bottom of the pot body can not be outward convex, can not exceed 0.05mm;
4. Pot body and lid surface to be clean
5, size: 110, 145, 180, 220, 300mm each one
