IEC60529 Spray Shower Tester IPX 3/4 waterproof testing

If you are interested in this product, you can sendmsg
Product Name: IEC60529 Spray Shower Tester IPX 3/4 waterproof testing
Product Model: CX-IPX3/4
Product exhibitors: Chuangxin
Product Documentation: No Related Documents

Brief

IEC60529 Spray Shower Tester IPX 3/4 waterprof testing


IEC60529 Spray Shower Tester IPX 3/4 waterproof testing  A detailed description of

IEC60529 Spray Shower Tester IPX 3/4 waterproof testing



Introduction:

This Spray Shower Tester IPX 3/4 are strickly designed according to IEC60529, GB4208, ect. It's used to test the waterproof performance of appliance and electric appliance with the rain protection function.



 Application:

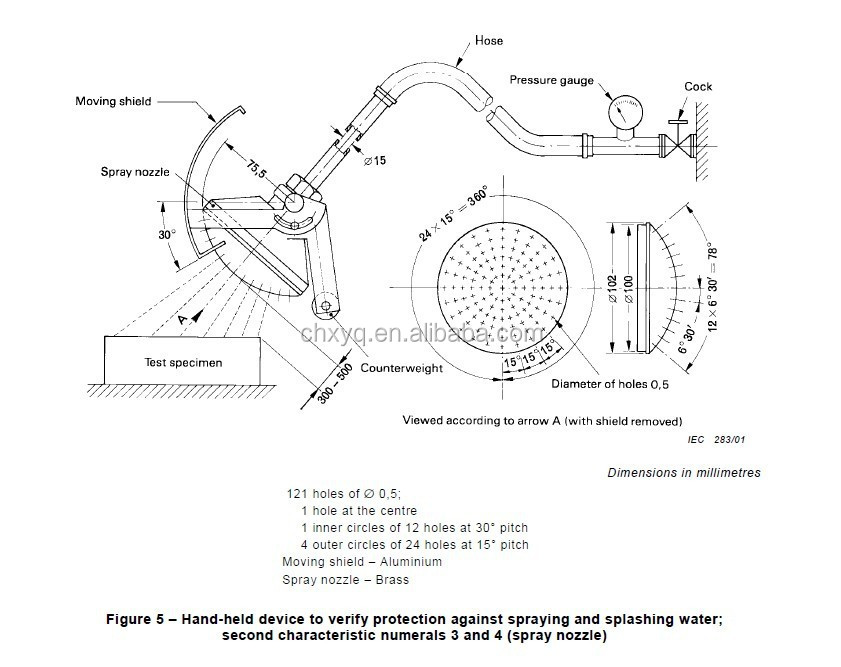

IPX3 and IPX4 Handle-held Spray Nozzle is used for verifying protection against spraying and splashing water. The water pressure can be adjusted using the flow control knob on the device to give the required flow rate.



The pressure can be seen on the gauge which is convenient positioned by the Spray Tester IPX 3/4.The spray pattern of the nozzle is made to the specifications of IE60529. The removable shield feature make it easy to test without the interference of the shield .



Number of holes Total 121
Diameter of nozzle holes 0.5 mm
Material Spray nozzle made of brass
Pressure gage 0 ~ 0.25Mpa
Water discharge 10L/min, ±5%, can adjustment
Reference IEC60529 IPX3 IPX4, IEC60598-1, IEC 60335-1, IEC60745-1
Nozzle diameter 102 mm
Nozzle hole surface radian 78°
