IEC61032 Joint Test Probe B

If you are interested in this product, you can sendmsg
Product Name: IEC61032 Joint Test Probe B
Product Model: CX-2B
Product exhibitors: Chuangxin
Product Documentation: No Related Documents

Brief

IEC61032 Joint Test Probe B


IEC61032 Joint Test Probe B  A detailed description of

IEC61032 Joint Test Probe B


This Test Probe is intended to verify the basic protection against access to hazardous parts. It's also used to verify the protection against access with a finger.


Notes:

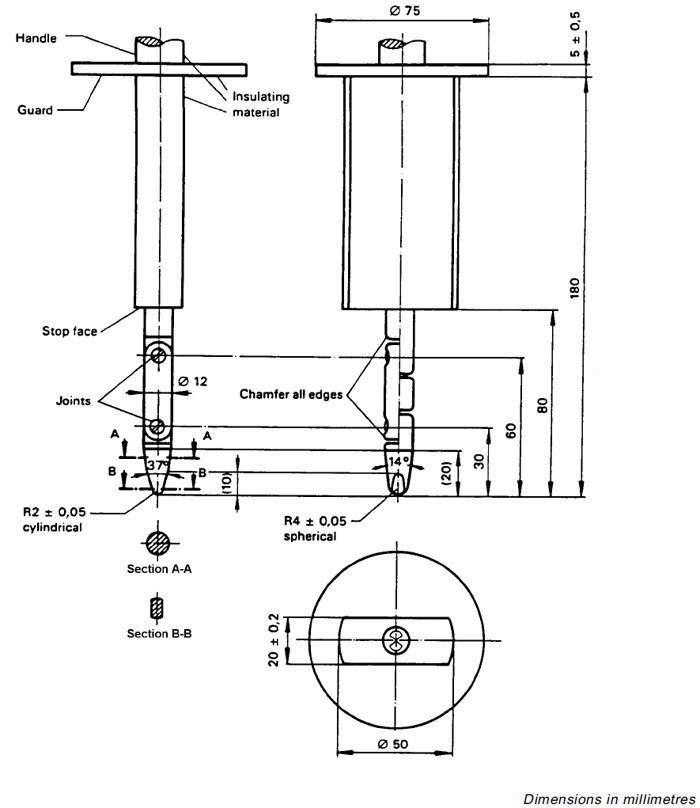

Both joints shall permit movement in the same plane and the same direction through an angle of 90o with a 0o to +10o tolerance.



Technical Parameters:

Kunrled finger diameter 12mm
Knurled Finger length 80mm
Baffle plate diameter 50mm
Baffle plate length 100mm
Baffle thickness 20mm
