  • Product name：IEC61032 Test Probe C

  • Product number：3C
  • Product manufacturer：Chuangxin
  • Product documentation：
你添加了1件商品 查看购物车
a brief introdction：
Meets IEC61032 Test Probe C and EN Standards, including IEC60529 IPX3 and suffix C codes.
Details description：

Product Description

Introduction

IEC61032 fig 3 IP3X 2.5mm test rod  is mainly manufactured for testing the protection against access to hazardous parts,such as hand tools .


According to IEC60529: Degrees of protection provided by enclosures(IP Code)

The first digit indicates the level of protection that the enclosure provides against access to hazardous parts (e.g., electrical conductors, moving parts) and the ingress of solid foreign objects.

IP3X 2.5mm test rod


Technical parameters

1,  Test Probe Length :100mm

2,  Test Probe Diameter:2.5mm

3,  Dam- sphere Diameter:35mm

4,  Handle Diameter:10mm

5,  Handle Length 100mm

6,  According to IEC61032 figure 3 (the Test probe C), table 6

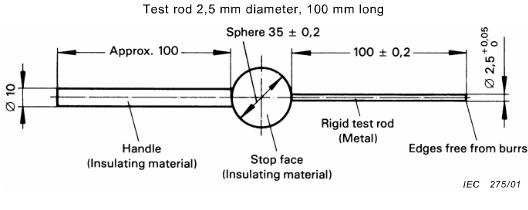

 Figure

IP3X 2.5mm test rod

Application:

1,  Standard test refers to the joint part can't touch the live parts or close to the hazardous parts, and 35mm circular baffle cannot enter .

2,  In the test requirement for preventing from approaching to the hazardous parts,  Test Probe C need to exert a 3±0.3N force.



Purpose:

This probe is aiming at verifying the basic protection against approaching to hazardous parts.
