Product Details
a brief introdction：
IPX9K Rain Spray Testing Chamber
IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX9, figure 7 to 12.
ISO20653-2013 “Road vehicles-Degrees of protection (IP code)-Protection of electrical equipment against foreign objects, water and access” figure 7, 8, 9 and table 7 (9K) ”
DIN40050-9 “Road vehicles-Degrees of protection (IP code)-Protection against foreign objects,
Details description：

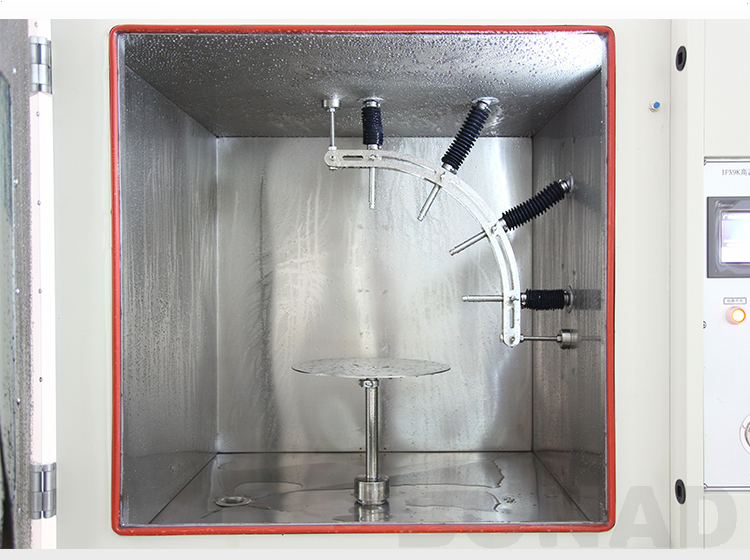

IPX9K Rain Spray Testing Chamber
Main Function:
1, suitable for product IPX9K waterproof rating test.
2. The shell is made of domestic high-quality steel plate, and the surface is sprayed with paint, beautiful and durable. 3, the inner box and turntable are all made of SUS304# stainless steel, to ensure that it will not rust for a long time. 4.Box-type structure; self-contained water tank, circulating water; the water tank is equipped with a water level float valve, which automatically controls the water intake and has a low water level alarm detection to effectively prevent the water pump from being dry and damaged. 5. There is a transparent observation window (tempered glass material) on the door, and an LED lighting lamp is installed in the box to facilitate observation of internal test conditions.
6. Four fan-shaped nozzles are uniformly distributed on the right side of the box at a vertical angle of 90°, strictly according to the standard design and manufacturing.
