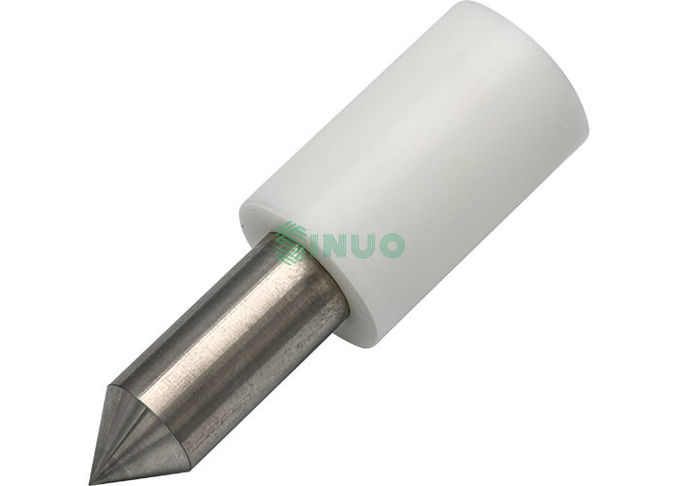

IEC60335-1 Clause 8.1.3 Test Probe 41 For Testing Glowing Heating Elements
Product Overview:
This probe conforms to the standard requirements of IEC60335-1 Clause 8.1.3, IEC 61032 test probe 41 figure 16, etc. This probe is intended to verify the protection against to glowing heating elements.
Probe Dimension:
| Probe cone part length (mm) | 21.5 (0,-0.05) |
| Probe rod part diameter (mm) | Ф30±0.05 |
| Probe length (mm) | 80±0.2 |
| Handle diameter (mm) | Ф50±0.2 |
| Handle length (mm) | 80±1 |
| Probe material (mm) | Stainless steel |
| Handle material (mm) | Nylon |
Please refer to the relevant standards.
Take IEC60335-1 Clause 8.1.3 as an example:
For appliances other than those of class II, test probe 41 of IEC 61032 is applied without appreciable force to live parts of visibly glowing heating elements, all poles of which can be disconnected by a single switching action. It is also applied to parts supporting such elements, provided that it is obvious from the outside of the appliance, without removing covers and similar parts, that these supporting parts are in contact with the element.
Sinuo can supply the full set of IEC 61032 test probes, and can manufacture various of test probes according other standards requirements, such as UL, VDE, BS, etc. Sinuo's test probes have high accuracy, can pass third party calibration.
Notice
1. Please do not damage the appliance shape (such as scratching, bending, etc.).
2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
