Product Information

IEC60529 IPX3-IPX4 Rain Proof Test Machine

If you are interested in this product, you can sendmsg
Product Name: IEC60529 IPX3-IPX4 Rain Proof Test Machine
Product Model: CX-IPX34A
Product exhibitors: Chuangxin
Product Documentation: No Related Documents

Brief

IEC60529 IPX3-IPX4 Rain Proof Test Machine ​Application The rain test system is strictly designed according to IEC60529. It’s applied to the Electrical equipment of the waterproof test of IPX3 and IPX4.


IEC60529 IPX3-IPX4 Rain Proof Test Machine  A detailed description of

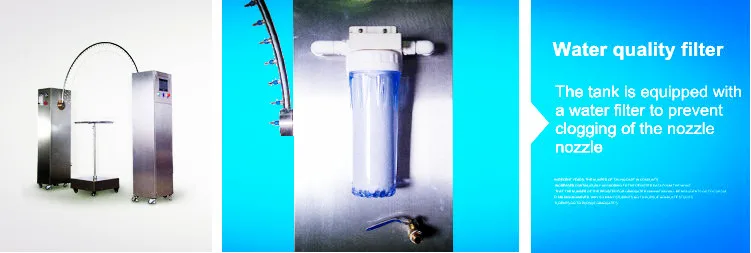

IEC60529 IPX3-IPX4 Rain Proof Test Machine

Application

The rain test system is strictly designed according to IEC60529. It’s applied to the Electrical equipment of the waterproof test of IPX3 and IPX4.

Technology Parameter



Power Supply

Single phase: AC220V, 50Hz

Swing Pipe diameter

19mm, thickness 2mm

Swing Pipe radius

R800 (304 stainless steel)

Orifice diameter

0.4mm

Orifice angle

IPX3: 120°;

IP4X: 180°

Pendulum Angle

IPX3: 120°(±60°);

IPX4: 360°(±180°)

Swing Pipe Speed

EPX3: 4s/time (2x120°)

IP4X: 12s/time (2x180°)

Water discharge

1-10L/min, adjustable

Test time

0-999mins, can preset

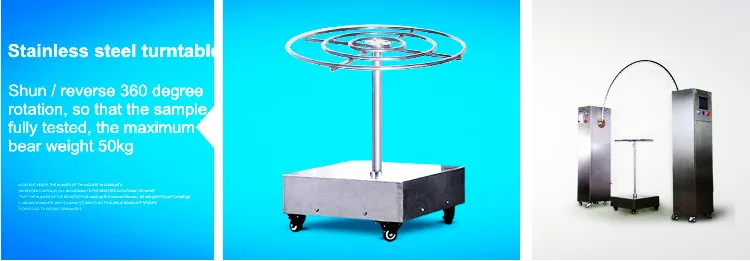

Swivel table diameter

700mm

Swivel table speed

(1-5) rpm

Tiltable Angle

15°

Swivel table rotation angle

900°,continuous rotation

Pressure Gage

0~0.25MPa
