  • Product name：IEC60884 FIG 18 verification of maximum withdrawal force test apparatus

  • Product number：IEC60884 FIG 18
  • Product manufacturer：Chuangxin
  • Product documentation：
你添加了1件商品 查看购物车
a brief introdction：
IEC60884 FIG 18 verification of maximum withdrawal force test apparatus This device complies with the requirements of GB 189.1-2008 Figure 18/19, IEC884 Figure 18/19, VDE0620, etc. It is suitable for checking the maximum force required to pull the plug out of the socket and the single pole pin pulled out from the socket assembly. Whether the minimum force required is within the range specified by
Details description：

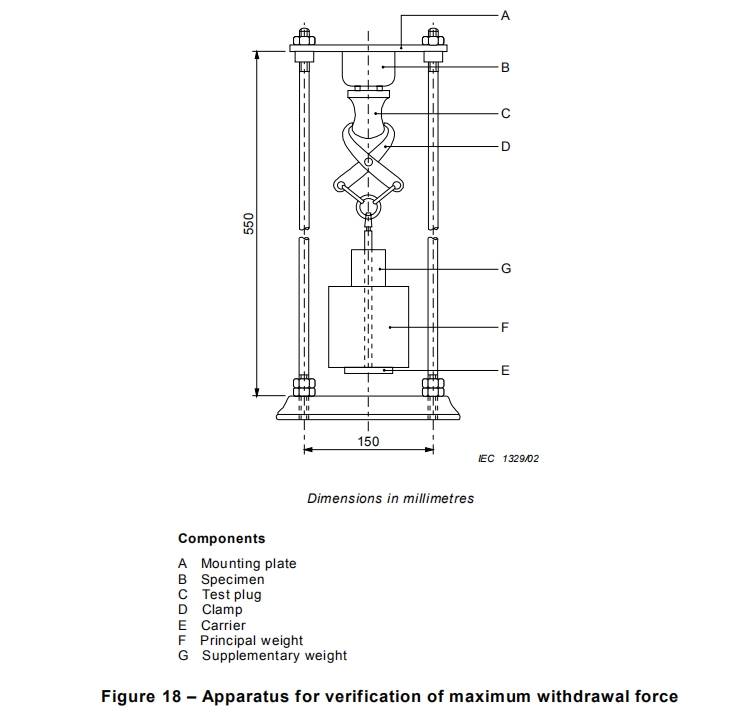

IEC60884 FIG 18 verification of maximum withdrawal force test apparatus

Product Description

Application:

This device complies with the requirements of GB 189.1-2008 Figure 18/19, IEC884 Figure 18/19, VDE0620, etc. It is suitable for checking the maximum force required to pull the plug out of the socket and the single pole pin pulled out from the socket assembly. Whether the minimum force required is within the range specified by the standard.
Product Paramenters

1. Standard one-pole 10A, three-pole 10A and 16A test standard plugs each, 10A 16A test standard plugs each, adjustable：

1) Round plug with 2-pole dual socket, the bolt diameter is 4.8 2) The round plug of the 2-pole dual-purpose socket, the bolt diameter is 4.0 3) Round plug (unipolar), the bolt diameter is 4.8 4) Round plug (unipolar), the bolt diameter is 4.0 2. Weights: 36N*1, 5.4N*1, 5N*2, 4N*1, 2.6N*1; • Standard test bolt: Each one for 1.5N and 2N • 1 set of clamping device • 1 set of Weights tray • Lateral stress weights 5N*1 • 1 set of lateral stress bar
